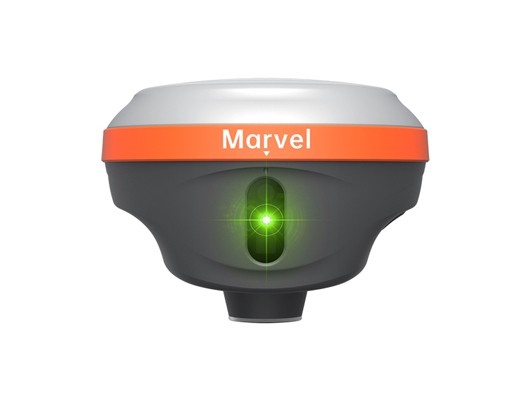

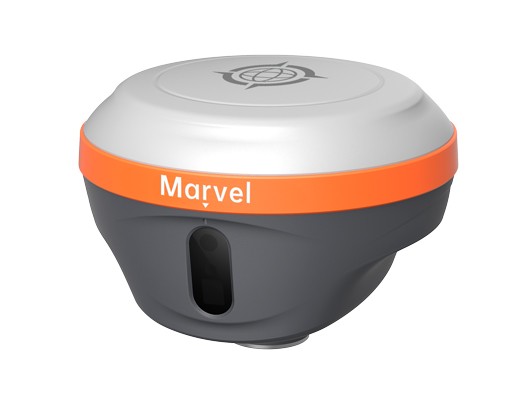

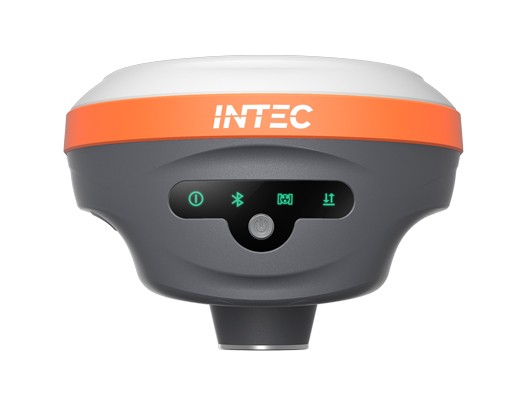

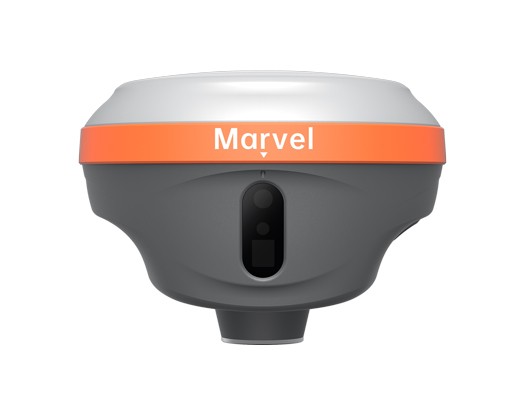

Marvel
Marvel is the RTK receiver combine with AR+Laser ,which greatly improve the efficiency of the surveying work , the receiver is equipped with modules: Bluetooth, Internal radio, WIFI & 4G modem.7000mAh Built-in battery, IMU tilt technology and WebUl. With INTALK protocol ,the internal radio working range can reach to 15km.
- Description
|

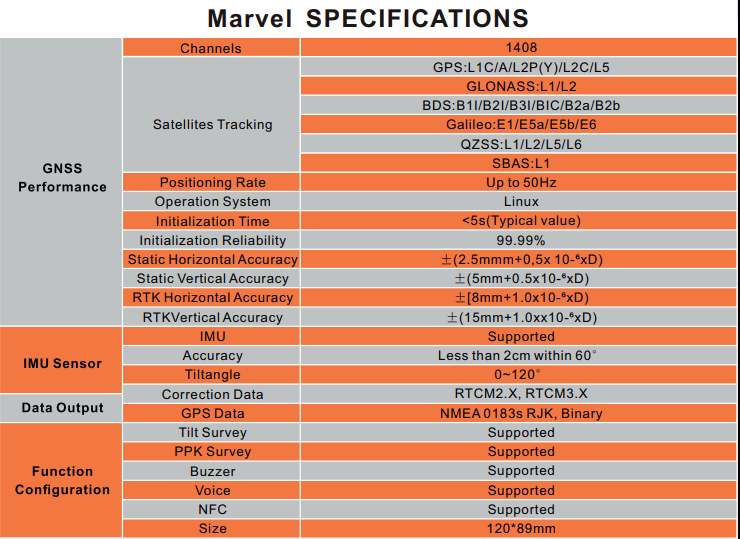

Specifications |
||
|
GNSS Performance |
Channels |
1408 |
|
Satelites Tracking |
GPS:L1C/A/L2P(Y)/L2C/L5 GLONASS:L1/L2 BDS:B1I/B2I/B3I/BIC/B2a/B2b Galileo:El/E5a/E5b/E6 QZSS:L1/L2/L5/L6 SBAS:L1 |
|
|
Positioning rate |
Up to 50Hz |
|
|
Operation system |
Linux |
|
|
Initialization time |
<5s(Typical) |
|
|
Initialization Reliability |
99.99% |
|
|
Static Horizontal Accuracy |
±(2.5mm+0.5x10-6xD) |
|
|
Static vertical Accuracy |
±(5mm+0.5x10-6xD) |
|
|
RTK Horizontal Accuracy |
±(8mm+1.0x10-6xD) |
|
|
RTK vertical Accuracy |
±(15mm+1.0x10-6xD) |
|
|
IMU Sensor |
IMU |
Supported |
|
Accuracy |
Less than 2cm within 60° |
|
|
Tile angle |
0°～120° |
|
|
Data Output |
Correction Data |
RTCM2.X、RTCM3.X |
|
GPS data |
NMEA 0183s RJK, Binary |
|
|
Function Configuration |
Tilt Survey |
supported |
|
PPK Survey |
supported |
|
|
Buzzer |
supported |
|
|
NFC |
supported |
|
|
Size |
120*89mm |
|
|

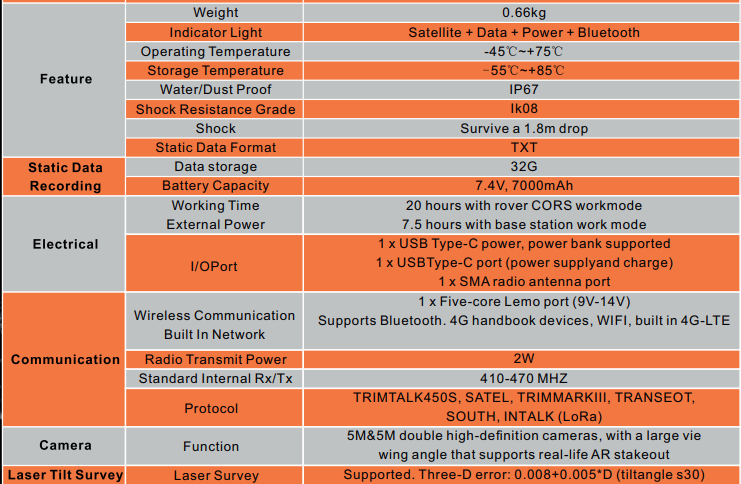

Feature |
Weight |
0.66 kg |
|
Indicator light |
Satellite+data+power+buluetooth |
|
|
Operating Temperature |
-45℃～+75℃ |
|
|
Storage Temperature |
-55℃～+85℃ |
|
|
Water/Dust Proof |
IP67 |
|
|
Shock Resistance Grade |
IK08 |
|
|
Shock |
Survive 1.8m drop |
|
|
Static Data Format |
TXT |
|
|
Static Data Recording |
Data Storage |
32G |
|
Battery Capacity |
7.4V、7000mAh |
|
|
Electrical |
Working time |
20 hours with rover CORS work mode 7.5 hours with base station work mode |
|
External Power |
USB Type-C power,power bank supported |
|
|
I/O Port
|
1*USB Type C(power supply and charge) 1*SMA radio antenna port 1*5-pin lemo port(9V-14V) |
|
|
Communication |
Wireless Communication |
Supports Buletooth,controller 4G,WIFI,bulit-in 4G-LTEB1/B3/B5/B7/B8/B20B38/B40/B4B1/B5/B883/B8GPS/GLONASS/BDS(Compass)/Galileo/QZSS |
|
Radio Transmit Power |
2 W |
|
|
Long Range radio(Lora) |
Supported |
|
|
Internal Radio Frequency |
410-470MHZ |
|
|
Protocol |
TRIMTALK450S，TRIMMAR KⅢ，TRANSEOT,SOUTH,INTALK(Lora) |
|
|
Camera |
Function |
5M&5M double high-definition cameras With a large viewing angle that supports real-life AR stakeout |
|
Laser Tilt survey |
Laser Survey |
Supported ,3D error 0.008+0.005*D(tilt angle≤30°) |
