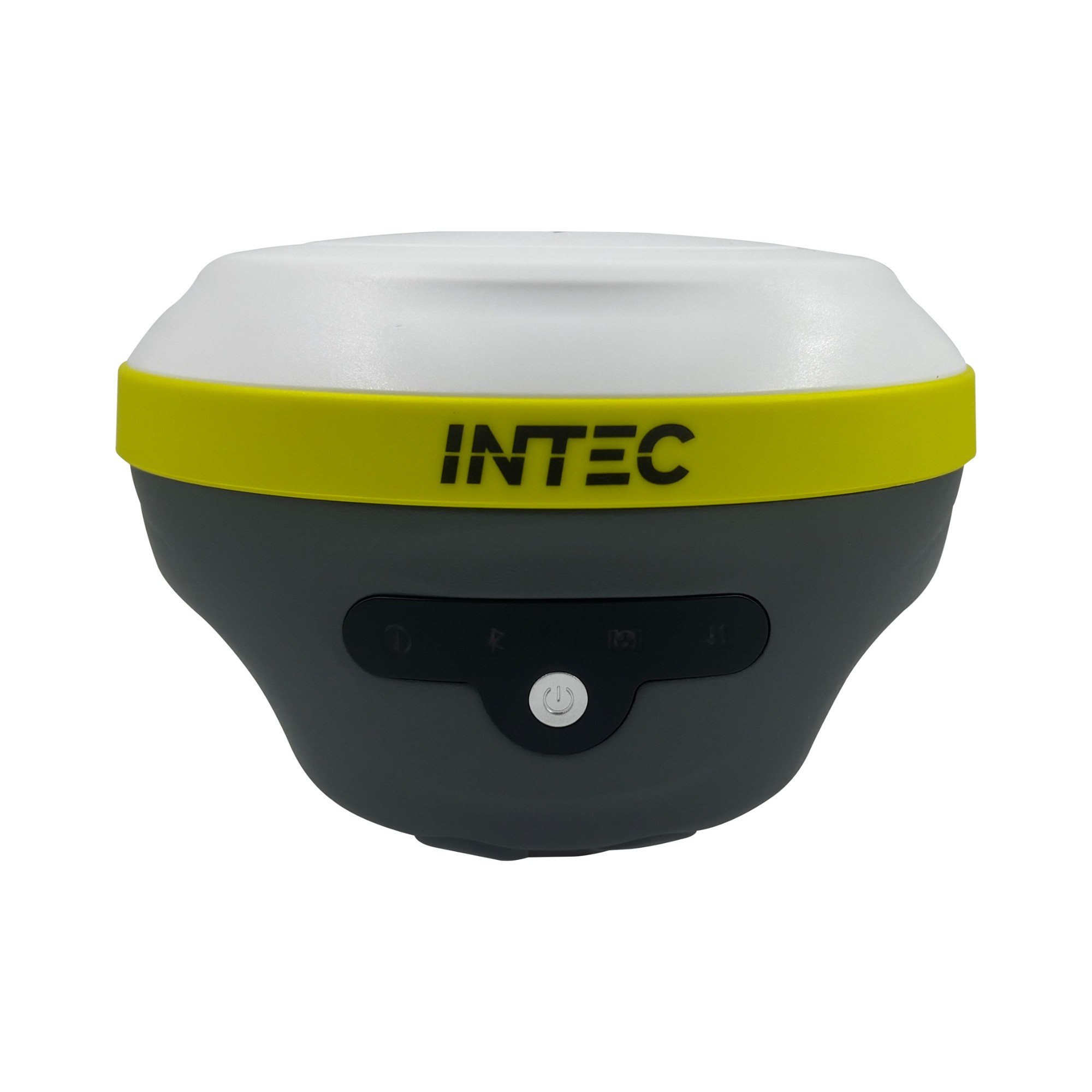

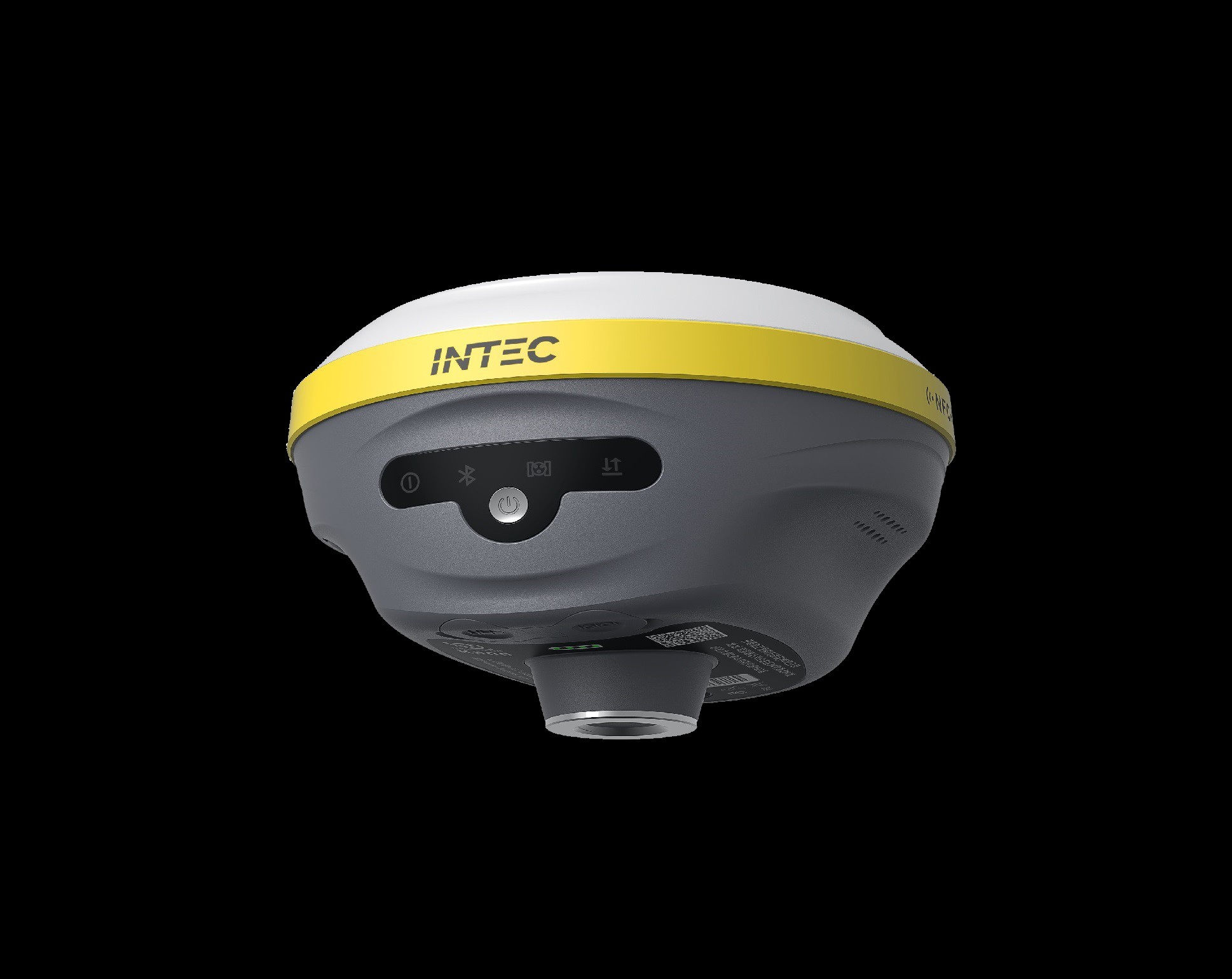

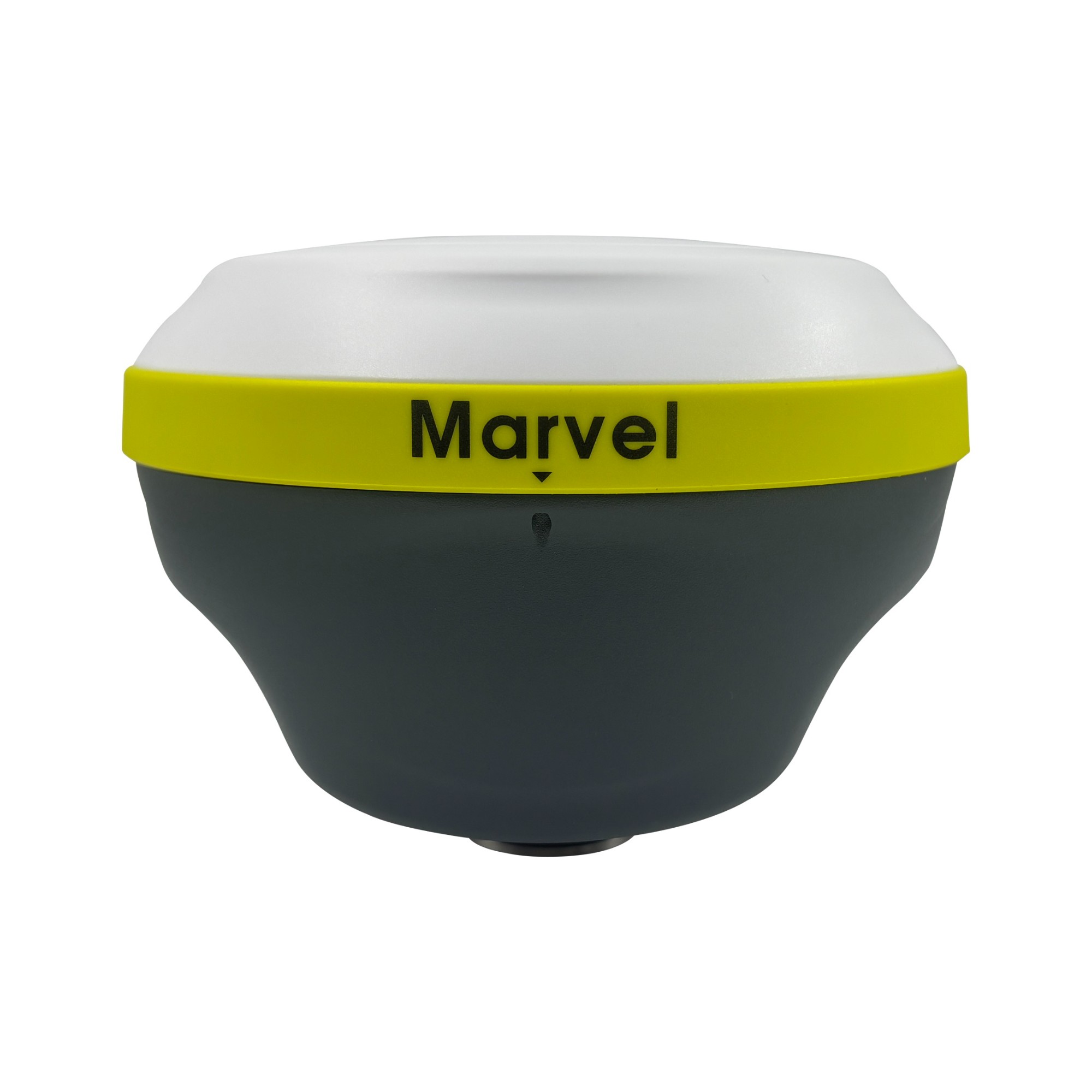

Marvel Lite
Cheap solution RTK Equipped with modules: Bluetooth, Internal radio, .7000mAh Built-in battery, IMU tilt technology With INTALK protocol ,the internal radio working range can reach to 15km
- Description
|
Specifications |
||
|
Channels |
1408 |
|
|
Satelites Tracking |
GPS:L1C/A/L2P(Y)/L2C/L5 GLONASS:L1/L2 BDS:B1I/B2I/B3I/BIC/B2a/B2b Galileo:El/E5a/E5b/E6 QZSS:L1/L2/L5/L6 SBAS:L1 |
|
|
Positioning rate |
Up to 50Hz |
|
|
Operation system |
GD32 |
|
|
Initialization time |
<5s(Typical) |
|
|
Initialization Reliability |
99.99% |
|
|
Static Horizontal Accuracy |
±(2.5mm+0.5x10-6xD) |
|
|
Static vertical Accuracy |
±(5mm+0.5x10-6xD) |
|
|
RTK Horizontal Accuracy |
±(8mm+1.0x10-6xD) |
|
|
RTK vertical Accuracy |
±(15mm+1.0x10-6xD) |
|
|
IMU |
Supported |
|
|
Accuracy |
Less than 2cm within 60° |
|
|
Tile angle |
0°～120° |
|
|
Correction Data |
RTCM2.X、RTCM3.X |
|
|
GPS data |
NMEA 0183s RJK,Binary |
|
|
Tilt Survey |
supported |
|
|
PPK Survey |
supported |
|
|
Buzzer |
supported |
|
|
NFC |
supported |
|
|
Size |
120*89mm |
|
|
Weight |
0.63 kg |
|
|
Indicator light |
Satellite+data+power+buluetooth |
|
|
Operating Temperature |
-45℃～+75℃ |
|
|
Storage Temperature |
-55℃～+85℃ |
|
|
Water/Dust Proof |
IP67 |
|
|
Shock Resistance Grade |
IK08 |
|
|
Shock |
Survive 1.8m drop |
|
|
Static Data Format |
TXT |
|
|

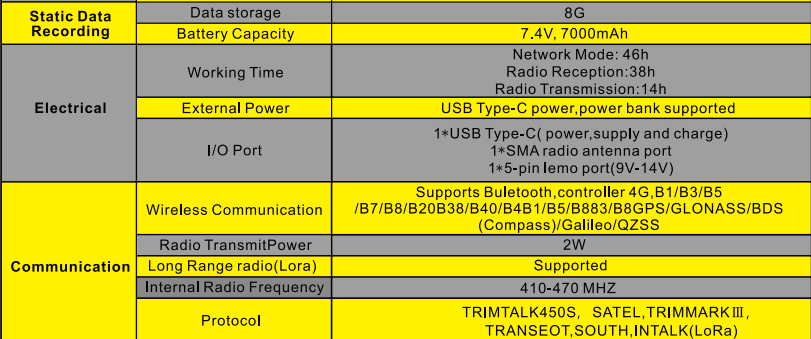

Data Storage |
8G |
|
|
Battery Capacity |
7.4V、7000mAh |
|
|
Working time |
Network Mode: 46h Radio Reception:38h Radio Transmission:14h |
|
|
External Power |
USB Type-C power,power bank supported |
|
|
I/O Port
|
1个USB Type C(power supply and charge) 1个SMA radio antenna port 1个5-pin lemo port(9V-14V) |
|
|
Wireless Communication |
Supports Buletooth,controller 4G, B1/B3/B5/B7/B8/B20B38/B40/B4B1/B5/B883/B8GPS/GLONASS/BDS(Compass)/Galileo/QZSS |
|
|
Radio Transmit Power |
2 W |
|
|
Internal Radio Frequency |
410-470MHZ |
|
|
Protocol |
TRIMTALK450S，SATEL,TRIMMARKⅢ，TRANSEOT,SOUTH,INTALK(LoRa) |
|
